:: Description ::    :: Features ::    :: Applications ::    :: Technical Specifications ::

Diesel Fired, Gas Fired, Hor Air Generator, Hot Air Heater

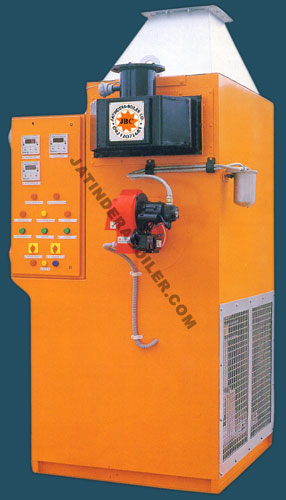

Diesel/Gas Fired Hot Air Generator/Heater

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

  • Air heaters are the best solution/alternate for all applications wherever Air Heating is done.

  • Reverse Flame Technology

  • Insulated casing with LRB Metress/Mineral Wool

  • Fully automatic ON/OFF Imported Burner

  • Combustion Chamber fabricated out of SS-304/314 smoke tube/Membrane

  • Dynamically balanced ventilation blower fan

  • Dust free pre-wired fully automatic Control panel

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

  • Space Saver and can easily be installed with exisiting or new system.

  • Compact and Low Installation Cost

  • Maintenance Free Operation & Noiseless

  • No Piping and Expensive Valves and Fitting.

  • Low initial cost as compared to T.F. Heater & Steam Boiler

  • Low running cost as Compared to TF Heater & Steam Boiler

  • Thermal Efficiency of 90% � 2%.

  • Low Running Cost Compare Diesel to Gas 25% Net

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

  • Rotogravure Printing

  • Drying Tumbler

  • Tobacco Drying

  • Food Industries

  • Plastics 4 Pulses & Corals

  • Tapes 4 Drying

  • Laminations

  • Space Heating

  • Minera Drying

  • Textile Industry.

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

DESCRIPTION

UNIT

JBC AH-25 JBC AH-50 JBC AH-100
HEAT OUTPUT Kcal/Hr. 25000 50000 100000
ELECTRICAL LOAD Kws 29 58 116
HOT AIR TEMPERATURE °C 90/180 90/180 90/180
PROCESS AIR FLOW AT STP
(1. 2 KG/M3 AIR DENSITY)
M3/Hr. 1750/730 3500/1460 7000/2920
TEMPERATURE RISE °C 50/150 50/150 50/150
FUEL CONSUMPTION HSD (DIESEL) Kg/Hr. 2.75 5.5 11
ELECTRICAL SUPPLY AC-3 PHASE, 4 WIRE
ELECTRICAL LOAD Kw 0.9 2.5 3.9
TEMPERATURE CONTROL FULLY AUTOMATIC FEATHER TOUCH
Dimensions Width mm 915 1050 1145
Length mm 1500 1500 1525
Height mm 2000 2300 2400

Note: We reserve the right to change any specification without prior notice.
