:: Description ::    :: Features ::    :: Applications ::    :: Technical Specifications ::

Water Heater
Water Heater



Water Heater
Water Heater

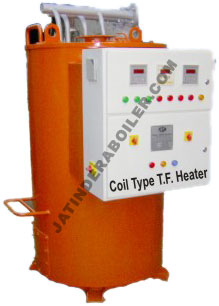

Coil Type T.F. Heater

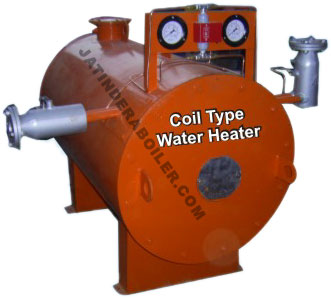

Coil Type Water Heater



Coil Type Water Heater

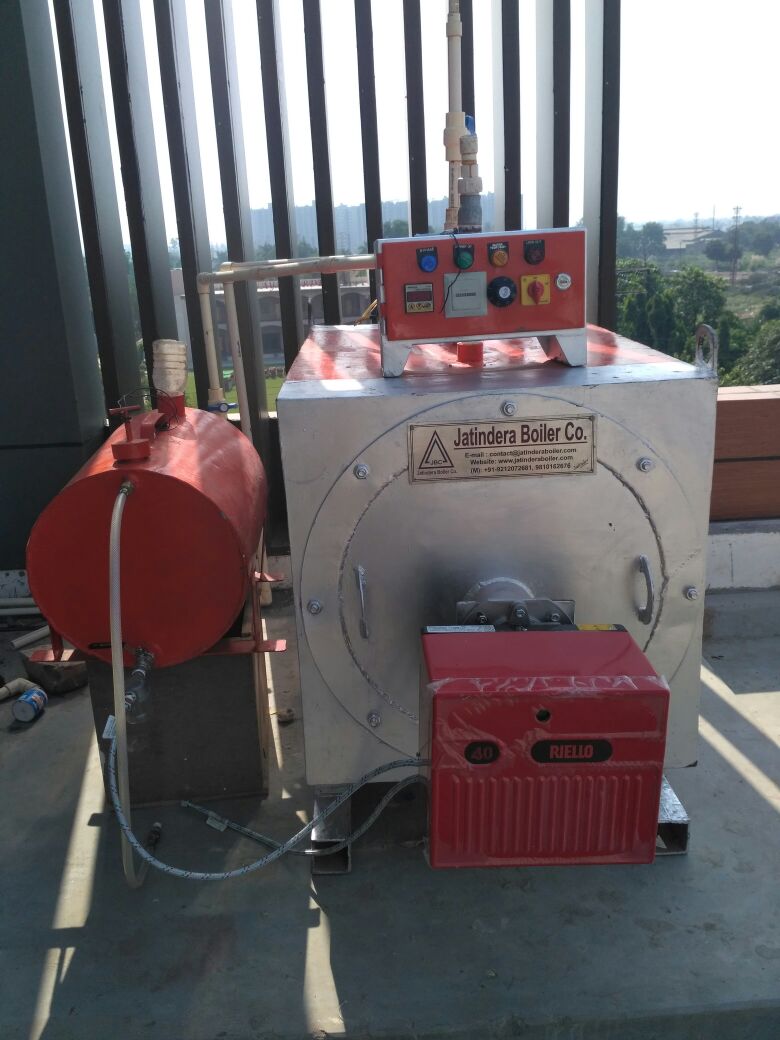

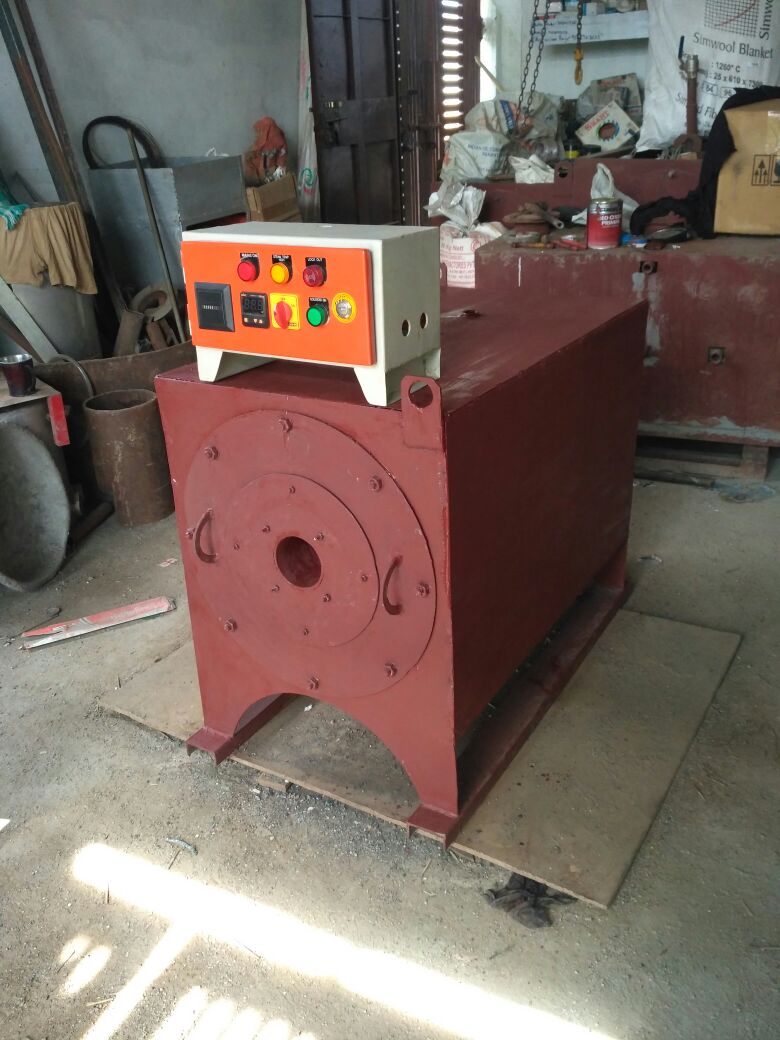

Box Type Water Heater

Electric Water Heater

Coil Type Water Heater

Box Type Water Heater

Electric Water Heater


                        :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

For Coil Type Water Heater

  • Water boils when its vapour pressure equals the atmospheric pressure. When pressurized, water can boil at temperature above 100C. Water is Eco Friendly and has a specific heat of one, which makes it an excellent medium for industrial heat transfer applications.

  • Helical Coil type Multi Pass, once through, forced circulation Principal to use heat Transfer fluid without risk of chemical degradation

  • Fabricated out of ERW Boiler tube as per BS-3059

  • Double shell of mild steel construction

  • Fuel atomizing pressure jet imported burner is placed vertically downward for combustion

  • Fully automatic operation with dust proof pre wired control panel

For Box Type Water Heater

  • The efficient and cost effective way to generate hot water instantly. No more dependence upon the unreliable power supply to heat water

  • Fire tube type

  • Insulated casing

  • Heat Exchanger fabricated out of SS-304 Smoketube

  • Automatic Imported Burner

  • Insulated Hot water tank of SS Covered with CRCA externally

  • Powder coated sheets to give esthetic look.

For Electric Water Heater

  • Boilers use fuels to heat water or steam and circulate the hot water through pipes. The hot water produced is used to heat and/or produce hot water for personal or industrial use.

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

  • Temperature upto 105�C accuracy of �1%

  • Fully automatic. Labour-saving and economical as no trained boiler attendant is required.

  • More convenient than coal/oil-fired boilers.

  • No fire risks. Absolute safety from explosion.

  • Noiseless

  • Fully Automatic

  • Eco Friendly

  • Maintenance Free

  • Thermal Efficiency 92%.

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

  • Room & Space Heating

  • Swimming Pool Heating

  • Kitchen & bathing

  • Soap & Detergent

  • Dieing/Tumbler/Washing

  • Hotel & Hospitals

  • Metal Finishing

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

For Coil Type Water Heater

DESCRIPTION

UNIT JBC WH-01 JBC WH-02 JBC WH-04
HEAT OUTPUT Kcal/Hr 1,00,000

2,00,000

4,00,000
FUEL CONSUMPTION HSD DIESEL Kg/Hr 11.4

22.9

45.7
ELECTRICAL SUPPLY

AC-3 PHASE, 4 WIRE

CIRCULATING WATER PUMP Hp 3.0 5.0 7.5
Kw 2.3 3.5 5.0
FUEL PUMP MOTOR Hp 0.5 0.5 0.5
BLOWER MOTOR (Old Boiler Model) Kp 1.0 2.0 3.0
Kw 0.75 1 .5 2.2
IMPORTED  BURNER (New Model) Watts. 250 250 3Hp 3phase
BURNER CONTROL AUTOMATIC FEATHER TOUCH ON-OFF
TOTAL CONNECTED LOAD Kw 5.5 7.0 13.78


For Box Type Water Heater

DESCRIPTION UNIT JBC WH-05 JBC WH-01 JBC WH-02 JBC WH-04
HEAT OUTPUT CAPACITY KCal/Hr. 50,000 1,00,000 2,00,000 4,00,000
HOT WATER OUTPUT 80°C Ltrs/Hr. 700 1,400 2,800 5,600
MAX WATER OUTLET TEMP °C 90°
FUEL CONSUMPTION (HSD) Kgs/Hr. 5.75 11.5 23 46
POWER SUPPLY AC-220V (SINGLE PHASE & THREE PHASE)
IMP. BURNER MADE IN ITLY Watts 140 250 250 3 HP, 3 Phase
HOT WATER UNIT R storage ca. Ltrs. 500 800 1200 1800
EFFICIENCY % 92 ± 2


For Electric Water Heater

DESCRIPTION JBC EB-1 JBC EB-2 JBC EB-3
Evaporation (apprax) from & at IOO°Ckgs/hr 55 110 165
Electric Load (approx) kwh 35 70 105
Heat Output (x 102 Kcal/Hr) 30 60 90

Note: We reserve the right to change any specification without prior notice.
