4 Pass Wood Fired TF Heater



Non IBR Boilers, Wood Fired Thermic Fluid Heaters, Diesel Fired TF Heater, Gas Fired T.F. Heater, Wood Fired Thermic Fluid Heater

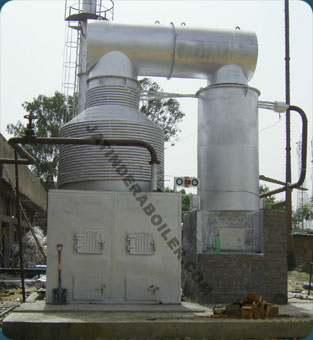

Wood Fired Thermic Fluid Heater

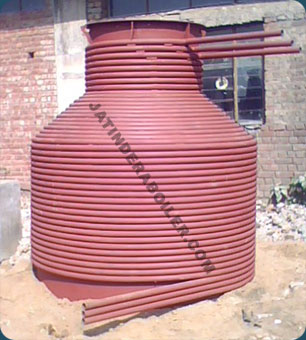

4 Pass Radiant Coil Type Boiler
4 Pass Radiant Coil Type Boiler

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

"JBC" Thermic Fluid Heaters are forced circulation liquid phase heating system. In the system heat transfer media (Thermk fluid) circulated in a closed circuit through heat heater. The same thermic fluid is reheated and recirculated. The combined expansion cum dearator tank system pressureless and vapourless. The unit basically with 3-Pass Construction. The Thermic Fluid Heating system operates near atmospheric pressure and temperature can be achieved as high as 300�C. Heater assembly consists of a nest of concentric helical tube coils place within a sturdy MS shell. The coils fabricated out of seamless tube high temp. Application allow flue pass to ensure maximum heat dissipation.

Working of 4 Pass Radiant Coil Type Boiler

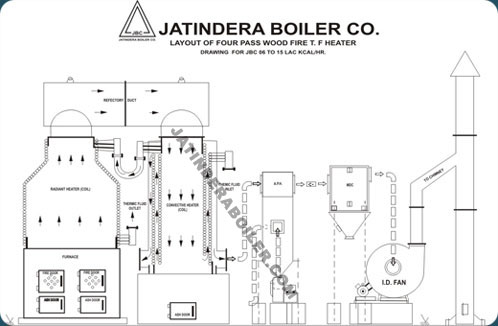

Layout of working of 4 Pass Wood Fire T.F. Heater



Working of 4 Pass Radiant Coil Type Boiler

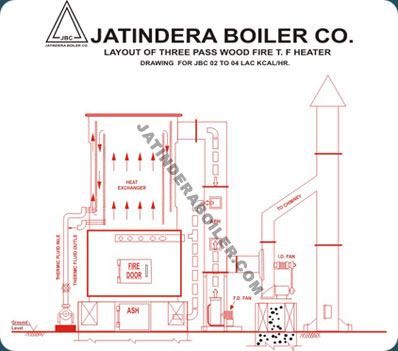

Layout of working of 3 Pass Wood Fire T.F. Heater

:: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

  • The furnace is constructed from Heavy Duty M.S. Sections and covered with M. S. Sheets on one side of the furnace is provided with necessary doors for husk/wood feeding, Emergency by-pass chimney.

  • Heat exchanger is fitted to the furnace.

  • The inside of the furnace is constructed with best quality fired bricks & insulation bricks.

  • The fire bars manufacture from the heat resisting casting are provided.

  • High combustion efficiency.

  • Low stack temperature on full load.

  • No corrosion or scale formation.

  • Efficiency 76% on GCV.

  • 60% Benefit firom Diesel/Gas & LDO.

  • Low Maintenance.

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

  • Textile

  • Chemicals

  • Plastic & Rubber

  • Timber

  • Metal Finishing

  • Drying Food Industries

  • Packaging

  • Confectionery

  • Printing etc.

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

Wood Fired Thermic Fluid Heater

DESCRIPTION

UNIT JBC TF-02 JBC TF-04 JBC TF-06
HEAT OUTPUT KCal/Hr 2,00,000

4,00,000

6,00,000
FUEL CONSUMPTION (ON WOOD) Kg/Hr 70

150

226
ELECTRICAL SUPPLY

AC-3 PHASE, 4 WIRE

CIRCULATING PUMP MOTOR Hp 7.5 12.5 15
Kw 5.5 10.0 12.5
FD FAN MOTOR Hp Nil 2.0 3.0
ID FAN MOTOR Hp 3.0 5.0 5.0
Kw 2.25 3.5 3.5
TF PUMP SIZE (MODEL KSB) mtr3 CPK - 32x200 CPK - 40x200 CPK - 50x200
OUTLET TEMPERATURE (Rise) 300C
TOTAL CONNECTED LOAD Kw 7.7 15.0 16.5
THERMAL EFFICIENCY % 75% 2%
EXPANSION TANK CAPACITY LTR 450

600

800
DRY WEIGHT (APPROX) KG 2100 3000 4500
THERMIC FLUID INLET/OUTLET MM 65 80 80
FLUE GAS OUTLET MM 300x250 400x330 422x330



4 Pass Radiant Coil Type Boiler

DESCRIPTION

UNIT JBC TF-06 JBC TF-10 JBC TF-15
FUEL   COAL/HUSK/AGRO WASTE
HEAT OUTPUT Kcal/Hr 6,00,000

10,00,000

15,00,000
MAX. FLUID OUTLET TEMP. C 300
MAX. HEAD AT HEADER OUTLET M/C 27
EFFICIENCY ON GCV - WOOD KG/Hr 70
RATED FUEL CONSUMPTION - WOOD Kcal/Hr 226

376

564
THERMIC FLUID PUMP MOTOR HP 12.5 15 30
I.D. FAN MOTOR - WOOD HP 7.5

10

15
F.D. FAN MOTOR - WOOD HP 2

3

5
TOTAL LOAD - WOOD HP 22

28

50
EXPANSION TANK CAPACITY LTR 800

1000

1000
DRY WEIGHT (APPROX) KG 4500 6200 9500
THERMIC FLUID INLET/OUTLET MM 80 100 150
FLUE GAS OUTLET MM 400x330 450x400 500x450
DIMENSIONS LENGTH MM 5000 5500 6000
WIDTH MM 4000 6000 6500
HEIGHT MM 5000 6000 7000

*Fuel Consumption calculation based on Gross Calorific Value

Thermal Efficiency on GCV

Wood: 3300 Kcal/Hr

Wood:

70%
Husk: 3100 Kcal/Hr Husk: 70%
Coal: 4500 Kcal/Hr Coal: 76%

Note: We reserve the right to change any specification without prior notice.
