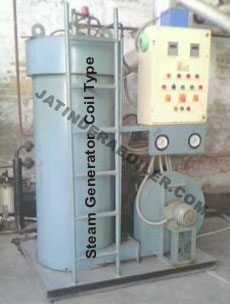

Steam Generator Coil Type

Coil Type Steam Boiler, Coil Type Boiler, Steam Boiler, Non IBR Boilers
Coil Type Steam Boiler

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

  • JBC Reverse Flame Steam Boiler (Generator) - Very Compact - Noiseless - Instant Steam Generator - Rigid

  • Reverse Flame Technology.

  • The Furnace is made of an air tight helical coil of membrane

  • Double jacketed MS Shell

  • Aluminum Radiator

  • Dust free pre-wired fully automatic control panel

  • Economizer for preheating of water

  • Coil Pipe TISCO & TI Coil diameter is 31.8mm/OD

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

  • Electrical, Mechanical & Safeties:

    • SEQUENCE CONTROLLER: Landis Gyr (Germany),

    • NOZZEL: Monarch (USA),

    • IGNITION TRANS.: Fida (Italy), Kelvin (Pune)

    • PHOTO CELL: Danfosse (Denmark),

    • BURNER ASSEMBLY: Thermax (Pune), JBC (Delhi)

    • FUEL PUMP: Suntec (France)/ Prakesh (Mumbai),

    • INDICATOR: Ideal (Indian & Chinese),

    • MOTOR: ABB/Crompton, Kirlosker

    • CONTACTOR: Seimens/Hemmar Cuttler/L&T,

    • MCB-MDS: Hewells

    • WATER PUMP: A-1 Shakti/Asian/Asspe

    • SOLENOID VALVE: Precious/Indfoss

    • PRESSURE SWITCH: Indfos

    • PRESSURE GUAGE: Mass/Manometer

    • BURNER ROD: Thermax Make, Delhi Make

    • DIGITAL TEMP CONTROLLER: JBC & Digital Link.


  • Steam generation within 2-3 min.

  • Package type

  • Eco Friendly

  • Low Fuel Consumption

  • Safe, maintenance free & automatic operation

  • No Skilled person is required for operation

  • Thermal Efficiency up to 87% � 2%

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

  • Textile

  • Chemicals

  • Plastic & Rubber

  • Timber

  • Metal Finishing

  • Drying Food Industries

  • Packaging

  • Confectionery

  • Printing etc.

 :: Send Enquiry ::    :: Top of Page ::    :: Home Page ::

DESCRIPTION UNIT JBC SB-1 JBC SB-2 JBC SB-4 JBC SB-6
RATED STEAM OUTPUT (F & A 1 00°C) Kg/Hr. 100 200 400 600
STEAM PRESSURE Kg/cm2g 10.54 - 15.0
FUEL MOIL CONSUMPTION HSD (DIESEL) Kg/Hr 6 12 24 36
BURNER CONTROL Automatic Feather Touch
FEED WATER PUMP MOTOR HP 1.0 1.0 1.0 1.0
FUEL PUMP MOTOR HP 0.5 0.5 0.5 0.5
BLOWER MOTOR HP 1.0 1.0 2.0 2.0
ELECTRICAL SUPPLY     AC-3 PHASE, 4 WIRE
EFFICIENCY (NCV) % 87 ± 2
DIMENSIONS LENGTH MTR 1.5 1.7 2.0 2.2
WIDTH MTR 1.3 1.3 1.5 1.5
HEIGHT MTR 1.0 1.1 1.3 1.3
DRY WEIGHT (APPROX) KG 650 800 1000 1100

*Fuel Consumption calculation
(based on NCV to confirm to IS Standard)

Thermal Efficiency on NCV
 (as per BS 85 Part I Method)
LDO: 10500 Kcal/Hr LDO: 87% � 2%
HSD: 10200 Kcal/Hr HSD:
FO/LSHS: 9650 Kcal/Hr FO/LSHS:
Natural Gas: 8500 Kcal/Nm3 Natural Gas: 85% � 2%
LPG: 22390 Nm3/Hr LPG:

Note: We reserve the right to change any specification without prior notice.
