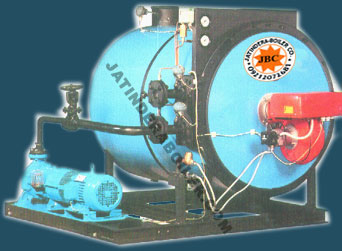

Gas Fired TF Heater, Diesel Fired Thermic Fluid Heater
Gas Fired & Diesel Fired Thermic Fluid Heater

:: Send Enquiry :: :: Top of Page :: :: Home Page ::

Helical Coil type Multi Pass, once through, forced circulation Principal to use heat Transfer fluid without risk of chemical degradation
Fabricated out of ERW Boiler tube as per BS-3059
Double shell of mild steel construction
Fuel atomizing pressure jet imported burner is placed vertically downward for combustion
Fully automatic operation with dust proof pre wired control panel
Dearator tank with Level switch and PRV

:: Send Enquiry :: :: Top of Page :: :: Home Page ::

Electrical, Mechanical & Safeties:
- SEQUENCE CONTROLLER: Landis Gyr (Germany),
- NOZZEL: Monarch (USA),
- IGNITION TRANS.: Fida (Italy), Kelvin (Pune)
- PHOTO CELL: Danfosse (Denmark),
- BURNER ASSEMBLY: Thermax (Pune), JBC (Delhi)
- FUEL PUMP: Suntec (France)/ Prakesh (Mumbai),
- INDICATOR: Ideal (Indian & Chinese),
- MOTOR: ABB/Crompton, Kirlosker
- CONTACTOR: Seimens/Hemmar Cuttler/L&T,
- MCB-MDS: Hewells
- TF PUMP: KSB, Prakash, Raunak
- PRESSURE SWITCH: Indfos
- PRESSURE GUAGE: Mass/Manometen
- DIGITAL TEMP CONTROLLER: JBC & Digital Link.
Temperature up to 300�C, accuracy of� 1%
Low working pressure of 2.5 Kg/Cm
Low running cost as compared to electric Heating
Fully automatic, Safe & Economical
Pollution free
No corrosion of scale - formation.
No registered Boiler attendant required
Low stack temp, on full load.
Efficiency upto 87%�2%

:: Send Enquiry :: :: Top of Page :: :: Home Page ::

Textile
Chemicals
Plastic & Rubber
Timber
Metal Finishing
Drying Food Industries
Packaging
Confectionery
Printing etc.

:: Send Enquiry :: :: Top of Page :: :: Home Page ::

DESCRIPTION

UNIT

JBC TF-01

JBC TF-02

JBC TF-04

JBC TF-06

HEAT OUTPUT

Kcal/Hr

1,00,000

2,00,000

4,00,000

6,00,000

FUEL CONSUMPTION HSD DIESEL

Kg/Hr

1 1.4

22.9

45.7

66.0

ELECTRICAL SUPPLY

AC-3 PHASE, 4 WIRE

THERMIC FLUID FLOW RATE

m³/hr

CIRCULATING PUMP MOTOR

5.0

7.5

3.7

5.5

7.5

9.3

FUEL PUMP MOTOR

0.5

BLOWER MOTOR (Old Boiler Model)

1.0

2.0

3.0

5.0

0.75

1 .5

2.2

3.5

IMPORTED BURNER (New Model)

Watts.

250

3Hp 3phase

BURNER CONTROL

AUTOMATIC FEATHER TOUCH ON-OFF

TOTAL CONNECTED LOAD

5.5

7.0

13.78

15.25

DRY WEIGHT (APPROX.)

930

1300

2350

2800

FLUID HOLD UP CAPACITY OF COIL

Ltr

287

375

DEARATOR TANK CAPACITY

Ltr

200

500

DIMENSIONS

LENGTH

MTR

1.5

1.6

1.9

2.1

WIDTH

MTR

1.0

1.9

HEIGHT

MTR

2.1

2.2

2.8

3.3

*Fuel Consumption calculation (based on NCV to confirm to IS Standard)		Thermal Efficiency on NCV (as per BS 85 Part I Method)
LDO:	10500 Kcal/Hr	LDO:	87% � 2%
HSD:	10200 Kcal/Hr	HSD:
FO/LSHS:	9650 Kcal/Hr	FO/LSHS:
Natural Gas:	8500 Kcal/Nm³	Natural Gas:	85% � 2%
LPG:	22390 Nm³/Hr	LPG:	85% � 2%

Note: We reserve the right to change any specification without prior notice.
